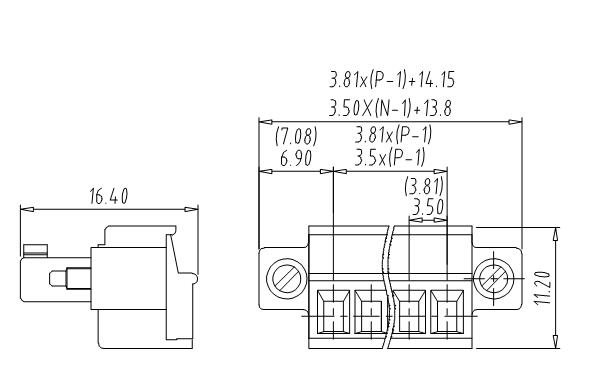

TBL3.5/3.81mm Plug With Flange
- 所属分类：插拔式接线端子
- 点击次数：67
- 发布日期：2020/02/07
- 全国服务热线：13248044196
- 我要询价
详细介绍：
| Material Properties | ||
| Insulator Material | PA66 | |
| Insulator Flammability Rating | UL94 V-0 | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Contact Type | Stamped | |
| Terminal Screw Material | Steel | |
| Terminal Screw Plating | Zinc | |
| Electrical Properties | ||
| Pitch | 3.5 | 3.81 |
| IR cULus | 10 A | 10.5A |
| Working Voltage [cULus] | 300 V (AC) | 250V(AC) |
| Withstanding Voltage [cULus] | 1000 V (AC) | 1000 V (AC) |
| Contact Resistance [cULus] | 20 mΩ | 20 mΩ |
| General Information | ||
| Operating Temperature | -40 up to +115 °C | -40 up to +115 °C |
| Compliance | RoHS | RoHS |
| Wire Properties | ||
| Stranded Wire Section (AWG) | 28 to 16 (AWG) | 28 to 16 (AWG) |
| Stranded Wire Section (Metric) | 0.25 to 1.5 (mm²) | 0.25 to 1.5 (mm²) |
| Other Data | ||
| Pitch/Poles [mm]/[P] | 3.5mm/ 2-24pin | 3.81mm/ 2-24pin |
| Part Number | TBL35016xx | TBL38117xx |
| Remark | xx:02-24pin | |
