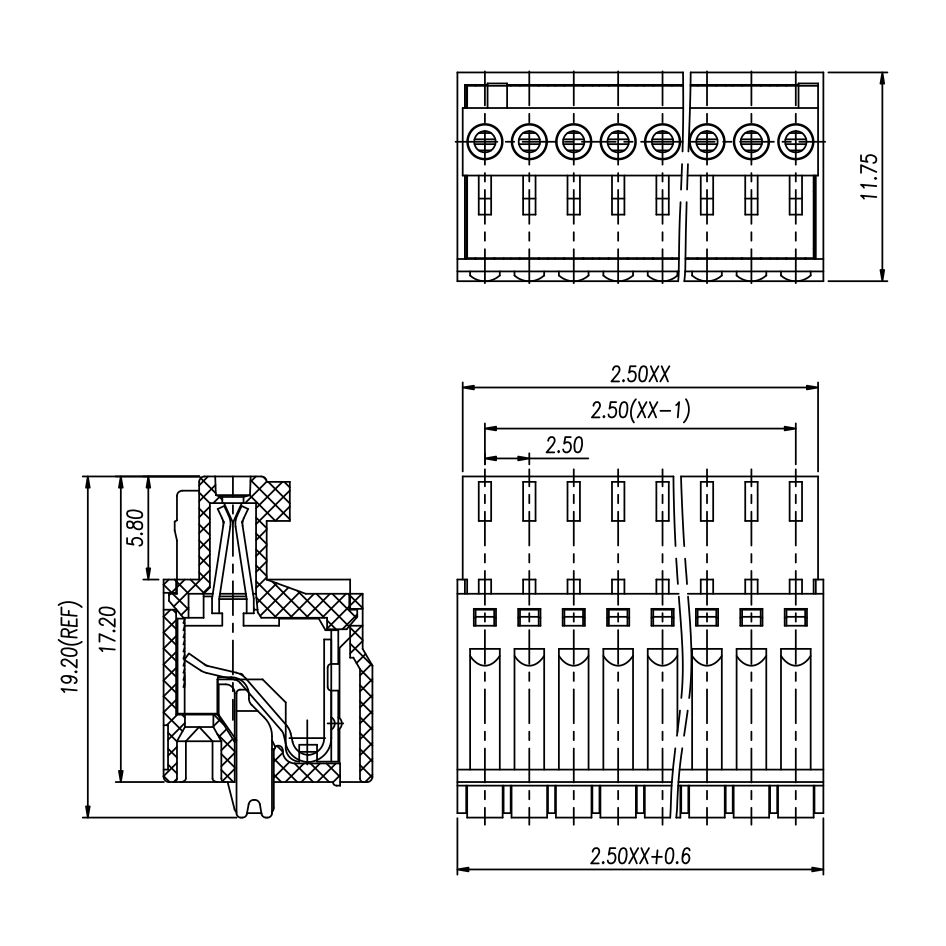

TBL2.5mm Plug
- 所属分类：插拔式接线端子
- 点击次数：63
- 发布日期：2020/02/07
- 全国服务热线：13248044196
- 我要询价
详细介绍：
| Material Properties | |
| Insulator Material | PA66 |
| Insulator Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Contact Type | Stamped |
| Terminal Screw Material | Steel |
| Terminal Screw Plating | Zinc |
| Electrical Properties | |
| IR cULus | 12 A |
| Working Voltage [cULus] | 300 V (AC) |
| Withstanding Voltage [cULus] | 1000 V (AC) |
| Contact Resistance [cULus] | 20 mΩ |
| General Information | |
| Operating Temperature | -40 up to +105 °C |
| Compliance | RoHS |
| Wire Properties | |
| Stranded Wire Section (AWG) | 26 to 20 (AWG) |
| Stranded Wire Section (Metric) | 0.2 to 0.5 (mm²) |
| Other Data | |
| Pitch/Poles [mm]/[P] | 2.5 mm/ 2-24pin |
| Part Number | TBL25013xx |
| Remark | xx:2-24pin |
